Specification:

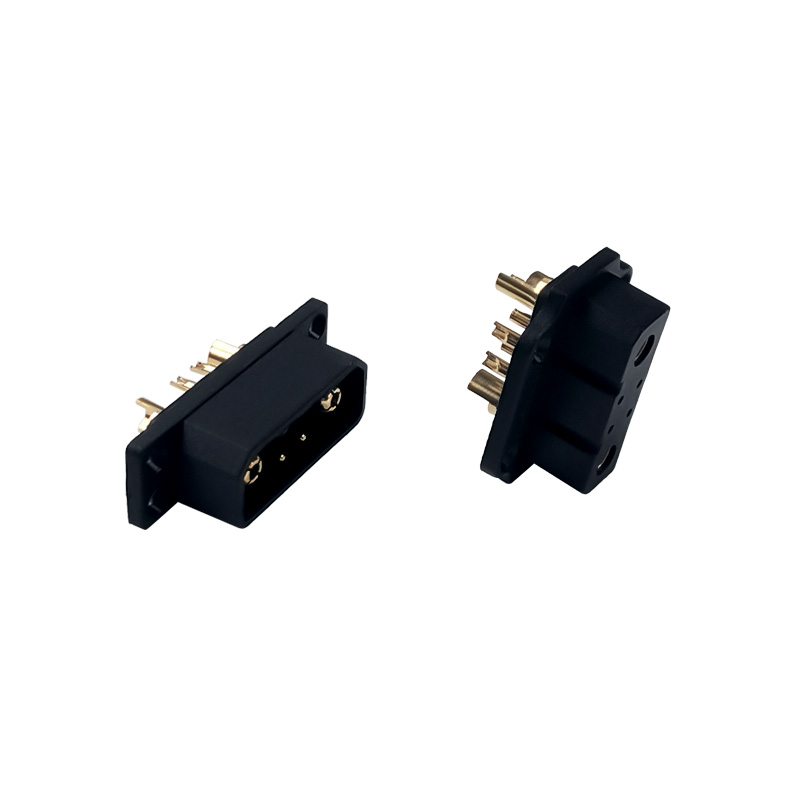

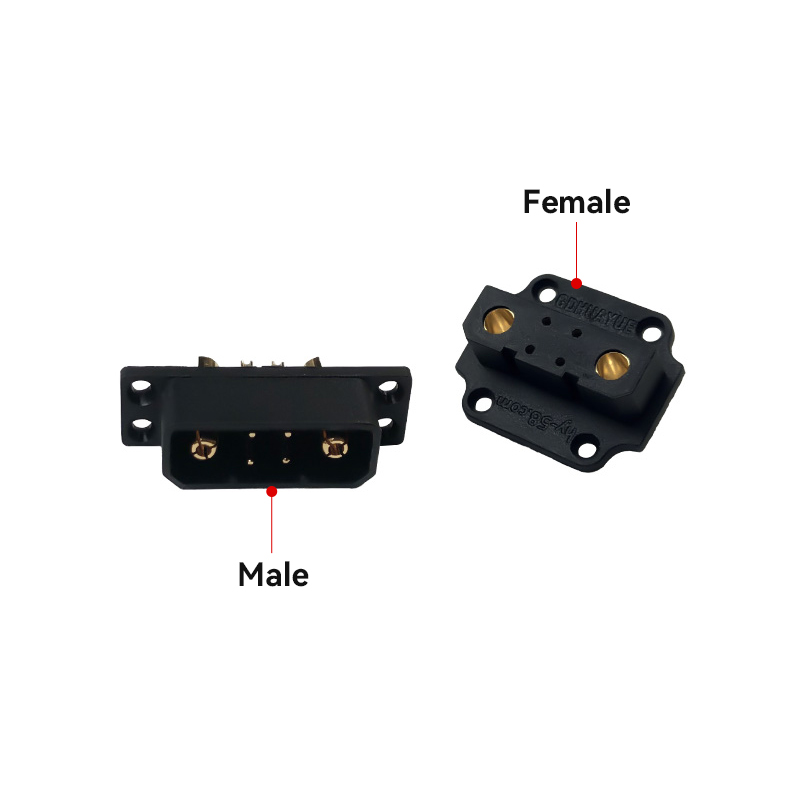

Item name: JX4 Servo Connectors
Metal Material: Brass Gold Plated
Plastic Material: PA
Instantaneous current: (big) 60A/(Small) 7A
Rated current: (big) 30A/(Sma1l) 5A
Rated voltage: DC 500V
Contact resi stance: 0.3 mΩ
Flame retardant leve: lUL94 V0
Working tenperature: -20C ~ 120C
Recommended usage times: 1000 TIMES
Cable SPEC：(big) 12AWG/（small) 20AWG
Note:
Please install one end of the plug on the device first, and then connect with the other plug.
Because it is difficult to separate by hand after the male and female plugs are connected together before being installed on the device
