RJX700 Specifications:

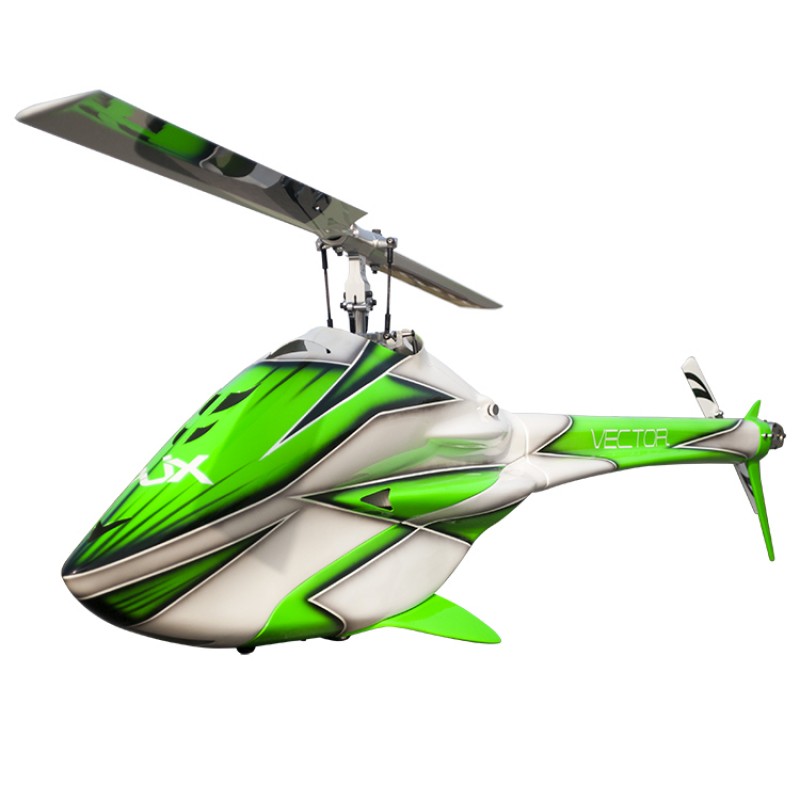

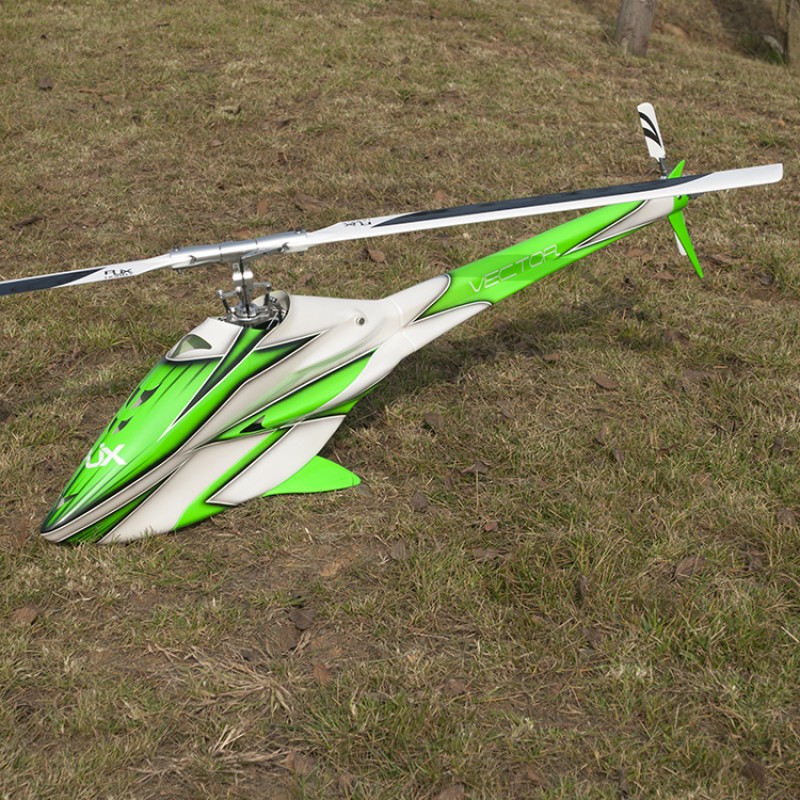

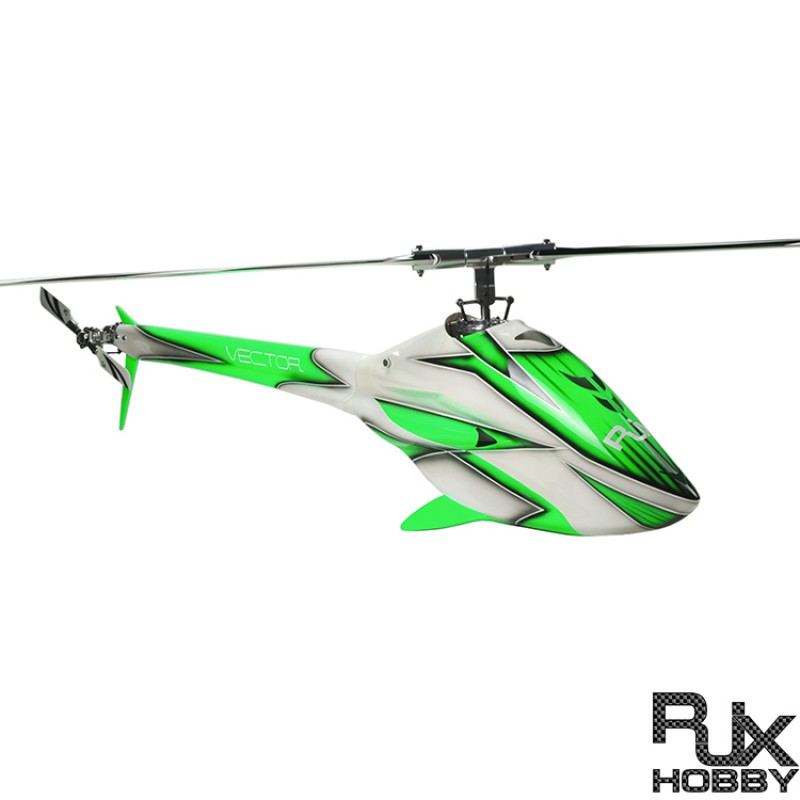

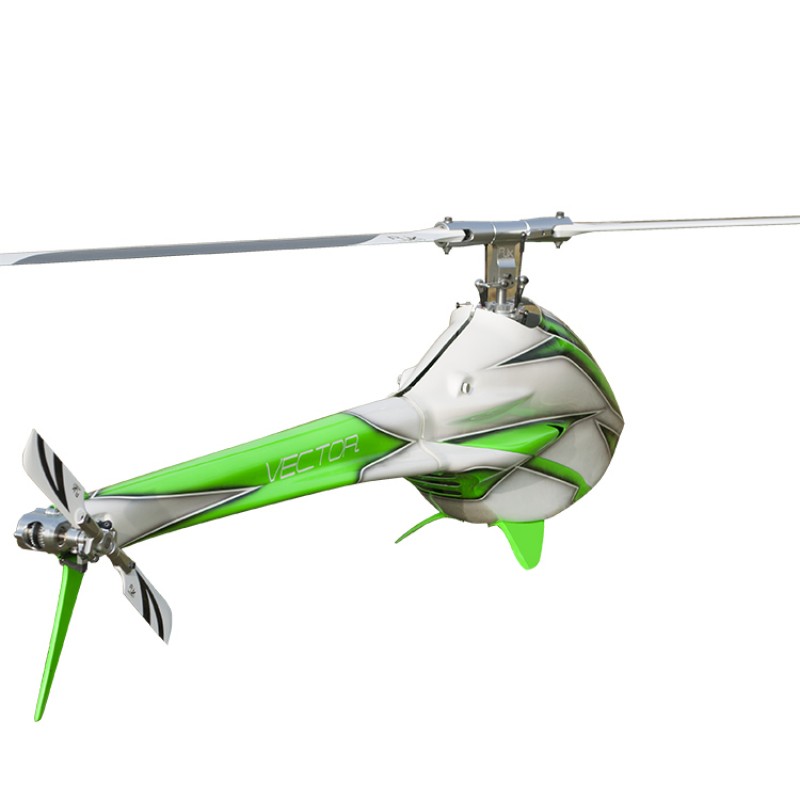

RJX700 2018 Competition Limited Edition Kit is limited to 200 pcs. World wide.
You will receive a customized helicopter with your name on Rotorhead and Blades.
Gross Weight: 7.65kg

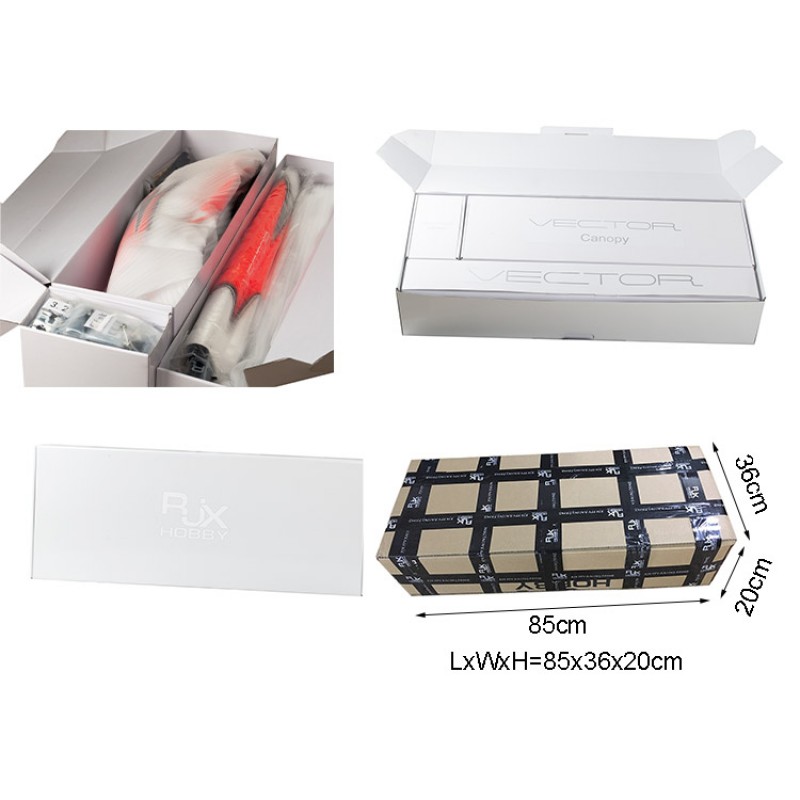

Volume Weight: 85*36*20cm (12.5kg)
Technical Details:
• Body Length: ca.1330mm
• Body Width: ca. 187.5mm
• Main rotor diameter: ca. 1552mm
• Main blades length: 690mm
• Tail rotor diameter: ca. 294mm
• Tail blades length: 105 mm
• Main shaft diameter: 12 mm
• Gear Ratios 8.79-9.42 : 1(28T/30T Motor Pinion)
• Tail Gear Ratio: 1:4.54
• Max. Motor Size: 62mm (Φ) x 68mm (h)
• Tail shaft diameter: 6 mm
• Spindle shaft diameter: 10 mm
• 2 Stage Belt Driven Power Drive with extra large 20mm S3M Motor belt
• Motor Belt Tension System… “1 screw adjustable” for easy setup of the Motor Belt tension
• Tail Belt with Shock Dampener for always perfect Tension
• Tail Servo Mount on Tail boom Holder
Kit including:
• Unassembled Kit RJX700 with Red Body
• Vector 690mm Carbon Main blades
• Vector 105mm Carbon Tail blades
• 1x Blade Holder
• 1x RX power cable (for 2S lipo )
• 2 x Kevlar Battery Straps(400*20mm + Metal Buckle)
• 2 x Non slip silicon Battery Straps(400*25mm + Metal Buckle)
Items required to complete the RJX700(not including)
• Motor: 4530 size, 500-560Kv
• ESC 160+ Amp
• 3 cyclic servos
• 1 Tail servo
• 8 ch Helicopter radio
• Lipo battery 12S-14S 4500mAh -5300mAh
